Bazooka BTA8200 BT Series 200-watt powered 8" bass tube

Features
Controls
Connections
Installation

Features

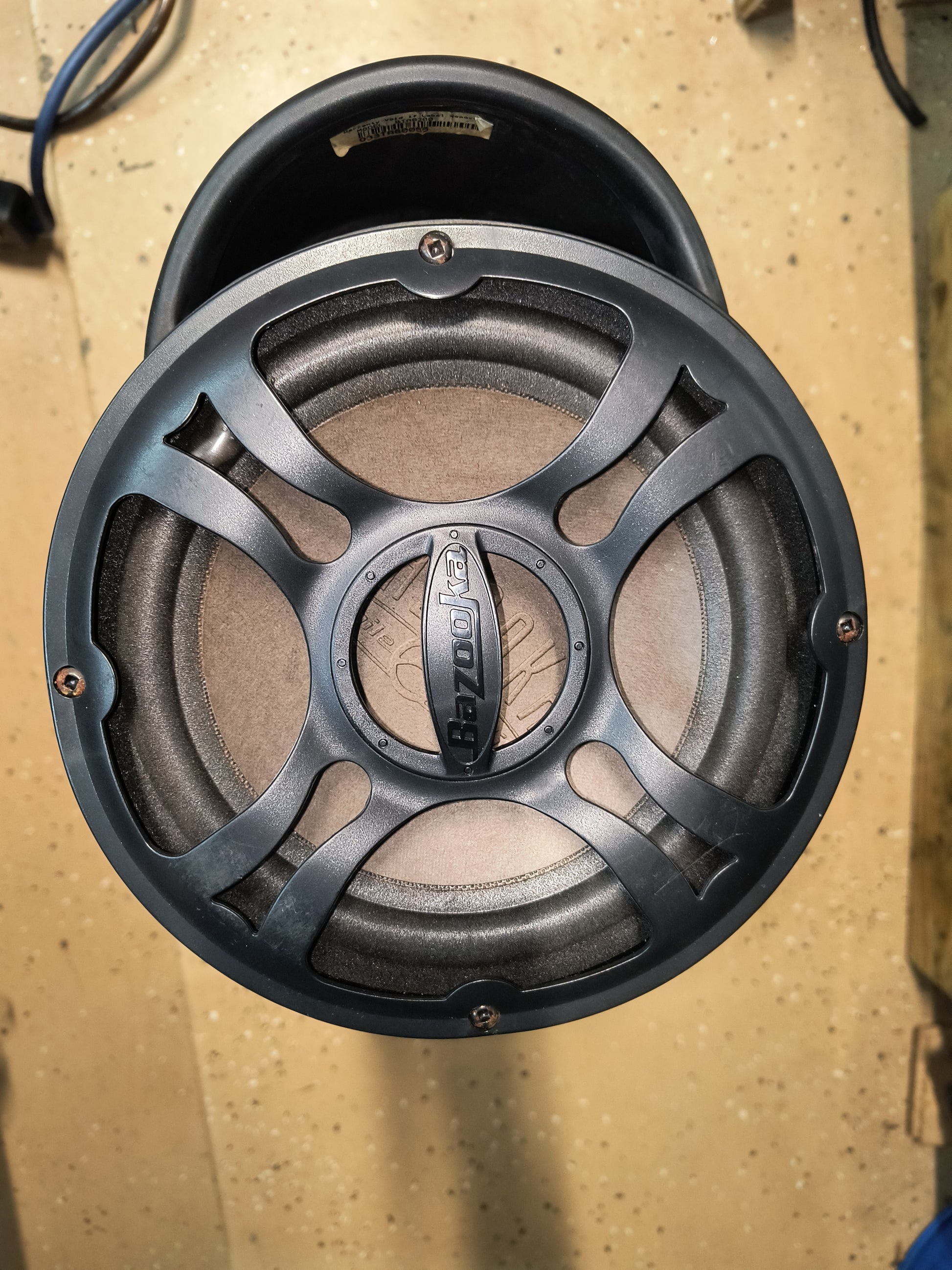

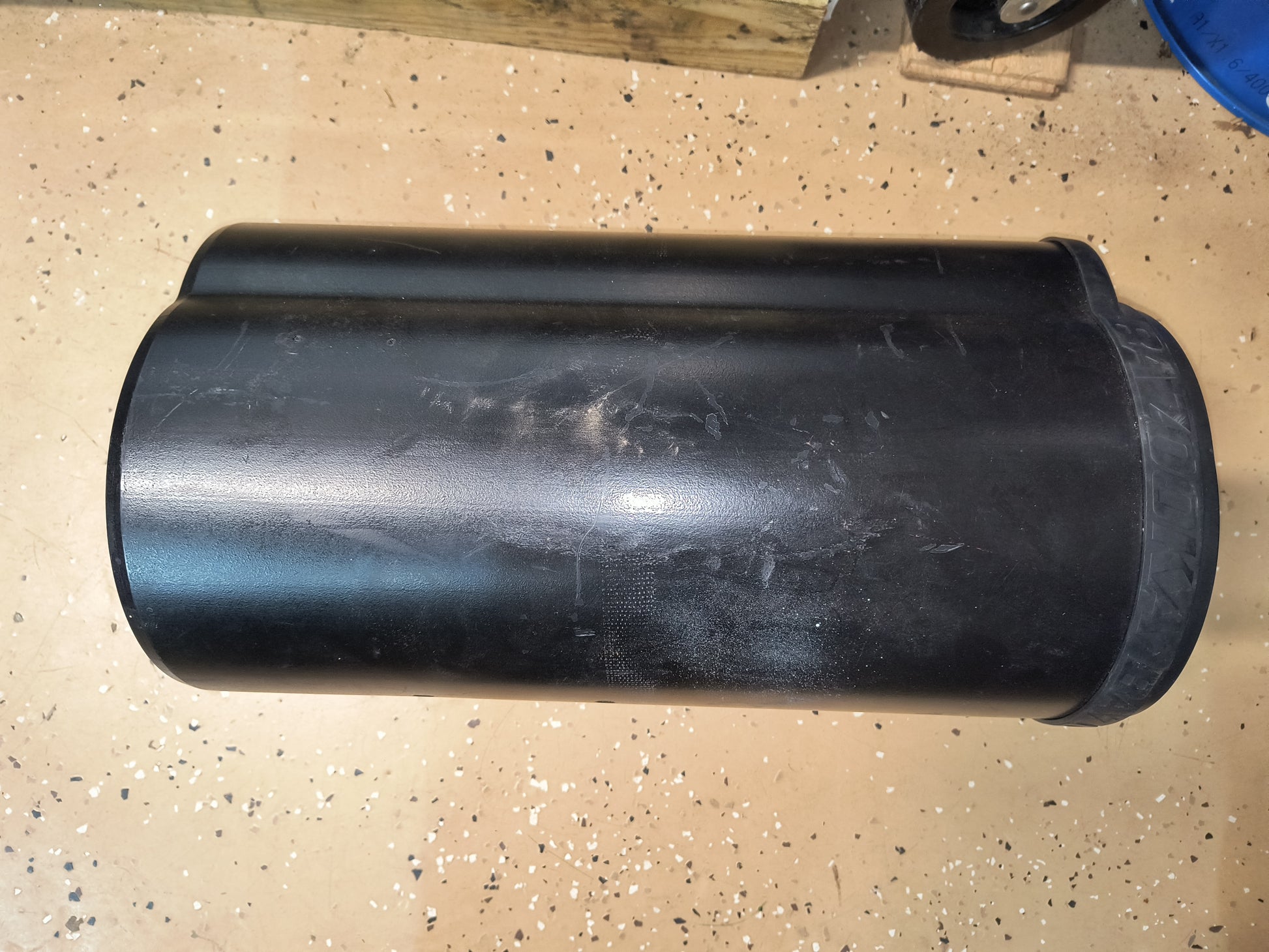

Overview: The BTA8200 features a water-resistant poly enclosure that houses an 8" poly woofer with a foam surround. The woofer is powered by a built-in 200-watt amplifier. The patented Bass Tube enclosure design eliminates bass standing waves for high accuracy, and superior efficiency.

Low-pass Filter: The BTA8200 has a low-pass filter that can be adjusted from 60 to 250 Hz.

Subsonic Filter: The subsonic filter, set at 35Hz, prevents really low frequencies from being amplified. This allows the amplifier to run more efficiently with increased power output.

Remote Level/Crossover Control: Using an optional remote control, you can control the bass output level and crossover frequency of the subwoofer from a remote location.

Balanced Input Circuitry: Balanced low-level and balanced high-level input circuitry is used for improved noise reduction.

Controls

Back Panel:

• Level Control: rotary control that allows you to adjust the level of the subwoofer
• Crossover Control: rotary control that allows you to adjust the low-pass filter from 60 to 250 Hz
• Power LED: if power, ground and remote are connected properly, the LED will illuminate in green

Connections

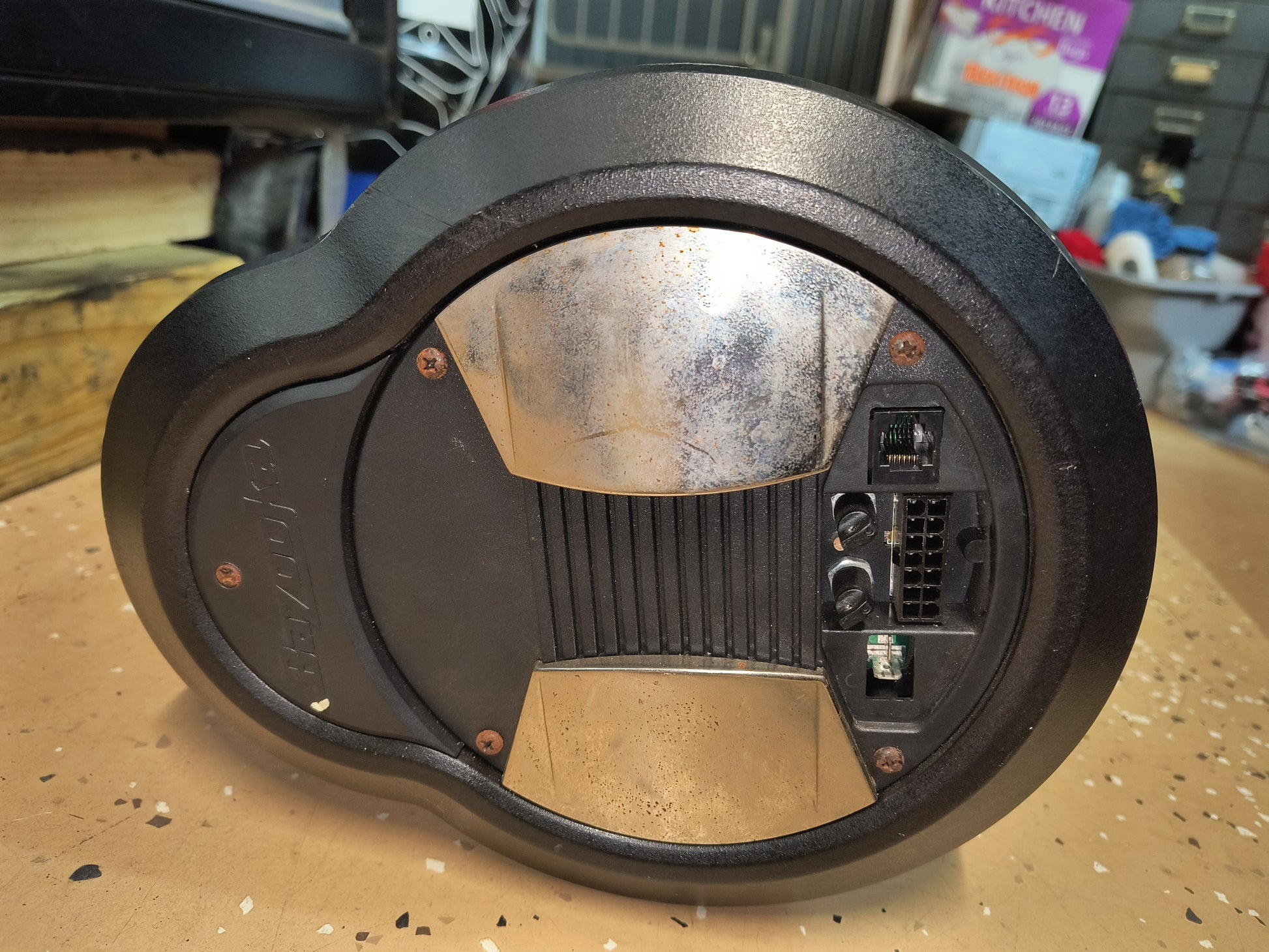

Back Panel:

• Remote Control: phone-type jack for use with an optional remote control
• Power Harness: two quick-slides for use with supplied power harness
• Signal Harness: 14-pin Molex plug for use with supplied signal harness is

Your favorite place for used 3000GT/Dodge Stealth parts!

3S Part-outs

Returns Policy

Non-Defective Items: Returns for reasons such as ordering by mistake or selecting the wrong part are subject to a 20% restocking fee. Customers are also responsible for return shipping costs.

Defective Items: If the part is defective, we will provide a full refund or replacement at no additional cost to you.

If you have any questions or concerns about the part please give us a call or txt {313} 378-0034.
